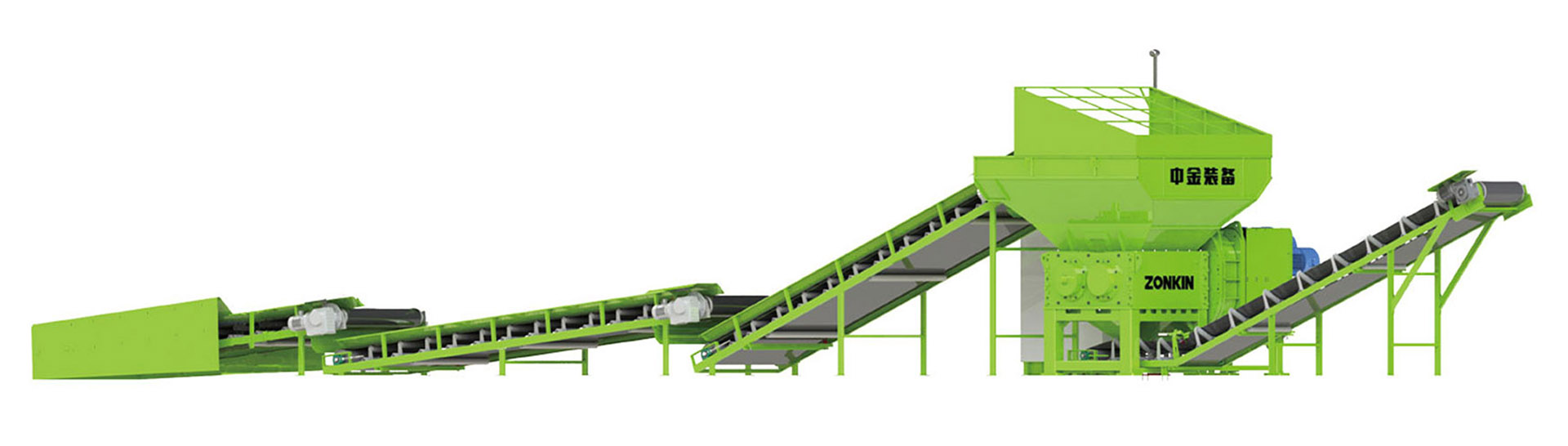

Rebar Shredder Line
- WhatsApp：+86 15573123666
- E-mail：tom.zhou@zonkin-group.com
Main parameters
Model |
Blade Edge Width (mm) |
Reference capacity (t/h) |
Main motor power (kW) |
Suitable Rebar Diameter (mm) |
Default discharge length (mm) |
| 3T-C | 300 | 3~5 | 37(37×1) | ≤22 | ≤100 |
| 6T-Z | 300 | 4~6 | 74(37×2) | ≤22 | ≤100 |
| 5T-C | 500 | 4~5 | 45(45×1) | ≤22 | ≤100 |
| 6T-D | 500 | 5~7 | 74(37×2) | ≤22 | ≤100 |
| 6T-C | 500 | 5~7 | 74(37×2) | ≤22 | ≤100 |
| 8T-C | 700 | 7~9 | 90(45×2) | ≤22 | ≤100 |
| 13T-C | 700 | 11~15 | 148(37×4) | ≤22 | ≤100 |
| 16T-C | 700 | 13~17 | 180(45×4) | ≤22 | ≤100 |
| 22T-C | 1000 | 17~23 | 222(37×6) | ≤22 | ≤100 |
Notes: 1. The above production capacity is measured based on the discharge length of 100mm. If the discharge length increases, the production capacity may increase accordingly.
2.We may update the technical parameters and shape due to constant technical upgrading without a prior notice.
Product Features
1. Power saving
The development of hydraulic transmission technology can save hundreds of thousands of yuan in electricity costs annually.
2. High quality
Adopting Sany's professional engineering machinery quality standards and the rigorous production quality assurance system ensures top-tier product quality.
3. Long life

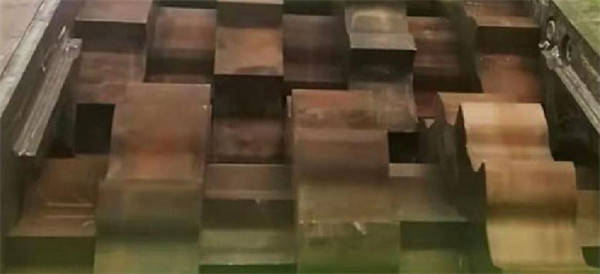

The blades are made of special alloy steel and undergo a special heat treatment process to significantly extend their service life, which has been market-tested. The blades can also be repaired at a low cost.
4. Intelligence
The equipment is designed with the automatic forward and reverse operation, automatic start / stop of conveyor belt, automatic speed adjustment and other functions, which shows higher automation degree and effectively reduces the labor intensity.
5.Wide Range of Applications, Mobile Processing, High Profitability (Mobile Type)
It can directly shred rebar or other steel scraps (such as: steel plate, container, structural components and other steel scraps) into conforming materials required for steel factory. Compared with the traditional processing mode in fixing site, it saves the intermediate links (such as: fixing site and manpower, loading, transport, rough processing, etc.) and greatly improves the profits.
Design Quality
Strictly follow the top-level engineering machinery research and development process to develop products, and undergo rigorous in factory testing.
Quality Of Components
All use high-quality components from top tier construction machinery in large quantities.
Assembly Quality
Experienced assembly personnel from top engineering machinery assemble the entire process.
Quality Inspection
Strictly follow the top-level engineering machinery inspection regulations and rigorously control every process.
