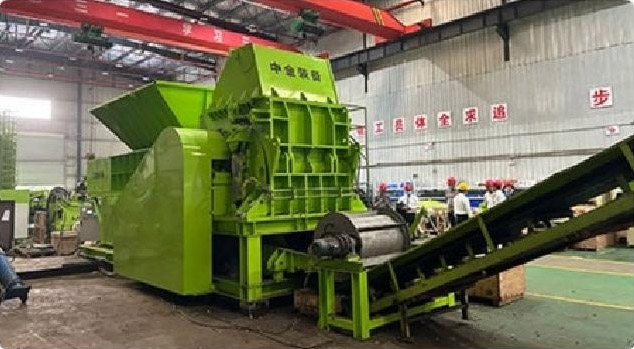

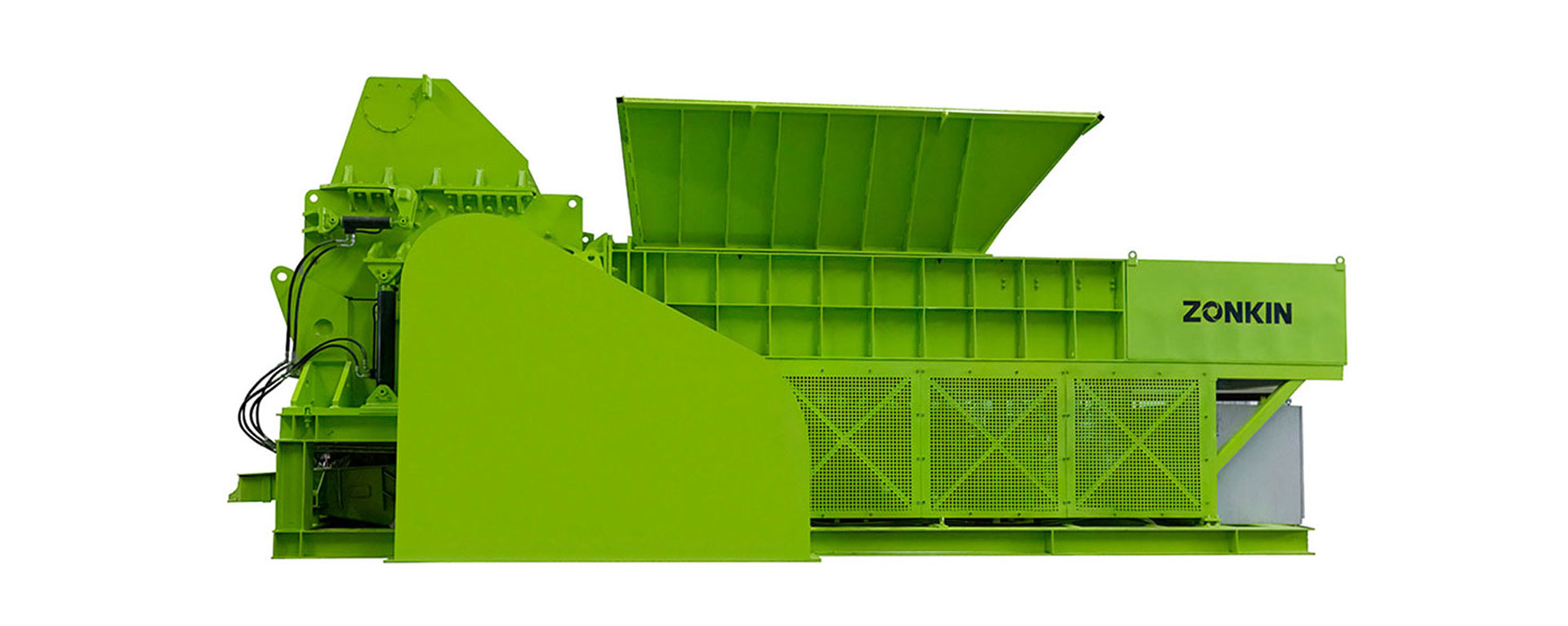

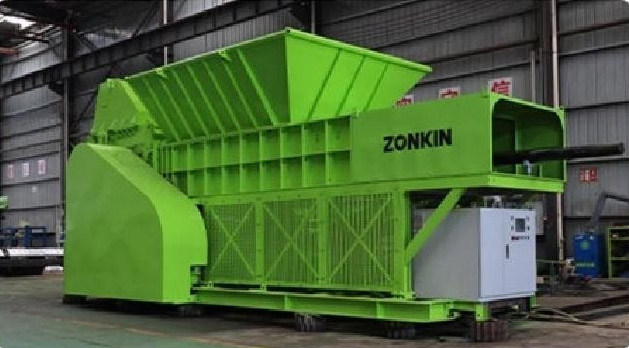

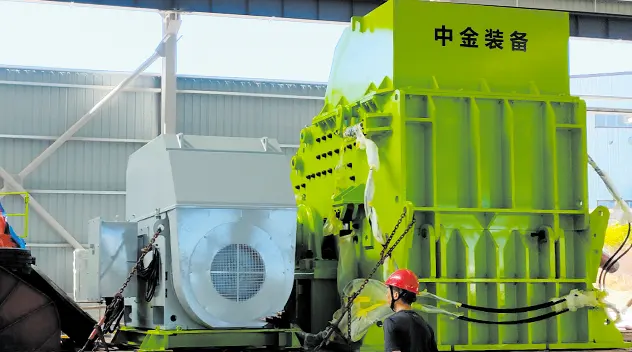

Pushing Feeding Shredder
- WhatsApp：+86 15573123666
- E-mail：tom.zhou@zonkin-group.com
Main parameters
Model |
PSJ1200-200 |
PSJ1400-315 |
PSJ1400-400 |
PSJ1800-630 |
PSJ1800-800 |
| Main motor power (kW/HP) | 200/272 | 315/428 | 400/544 | 630/857 | 800/1088 |
| Operating voltage | 380V | 380V | 380V | 380V | 6KV/1OKV |
| Starting method | Soft start/frequency conversion (optional) | Soft start/frequency conversion (optional) | Soft start/frequency conversion (optional) | Soft start/frequency conversion (optional) | Liquid resistance cabinet |
| Recommended transformer capacity (kVA) | 400 (soft start)/250 (frequency conversion) | 630(soft start)/500(variable frequency) | 800(soft start)/630(variable frequency) | 1000(soft start)/800(variable frequency) | 1250 |
| Reference capacity (t/h) | 3-5 | 5-9 | 6-10 | 9-15 | 12-20 |
| Default sieve hole size (mm) | 60 round hole
(60x70 square hole optional) |
60 round hole
(60x70 square hole optional) |
60 round hole
(60x70 square hole optional) |
60 round hole
(60x70 square hole optional) |
70x90 square hole |
| Reference weight (t) | 33 | 37 | 40 | 70 | 75 |
| Maximum working diameter of rotor(mm) | 1072 | 1072 | 1166 | 1560 | 1560 |
| Number of hammer heads | 8 | 10 | 10 | 12 | 12 |
| Weight of single hammer head (kg) | 40 | 40 | 40 | 80 | 80 |
| Crushing cavity width (mm) | 1200 | 1400 | 1400 | 1800 | 1800 |
| Box opening length (m) | 3 | 3 | 3 | 3 | 3.5 |
| Climbing belt (width-length) | B800x4.5m (half pit)
B800x8m (full pit) |
B800x4.5m (half-ground pit)
B800x8m (full-ground pit) |
B800x4.5m(Half pit)
B800x8m(Full pit) |
B1000-6m(Half pit) | B1000x6m(Half pit) |
| Outfeed belt (width-length) | B800x7m | B800x9m | B800x9m | B800x10m | B1000x12m |
| Garbage discharging belt (width-length) | B500x7m | B500x7m | B500x7m | B600-8m | B600x8m |
Note: We may update the technical parameters and shape due to constant technical upgrading without a prior notice.
Product Features
1. Worry-free
ZONKIN’s high quality products remove all your worries，Key parts come with alarm devices: Worry-free and convenient，After-sales services are supervised by General Manager in person to best ensure service quality
2. Convenient

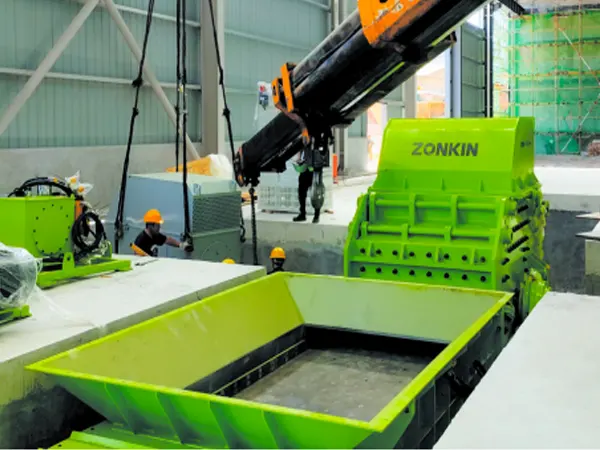

Choke machine can rotate either forward or backward with a short processing time，Simple installation: It can be put into production normally after 2-day installation & commissioning
3. Labor Saving
One person is required only for feeding which is controlled automatically
4. Site Saving
Compared with traditional shredder, it saves about 30% (including length) of occupied floor area
5. Landline Fee Saving
Start at variable frequency at low starting current to reduce the installed power of the transformer and save landline fee
Design Quality
Strictly follow the top-level engineering machinery research and development process to develop products, and undergo rigorous in factory testing.
Quality Of Components
All use high-quality components from top tier construction machinery in large quantities.
Assembly Quality
Experienced assembly personnel from top engineering machinery assemble the entire process.
Quality Inspection
Strictly follow the top-level engineering machinery inspection regulations and rigorously control every process.
